Accessories

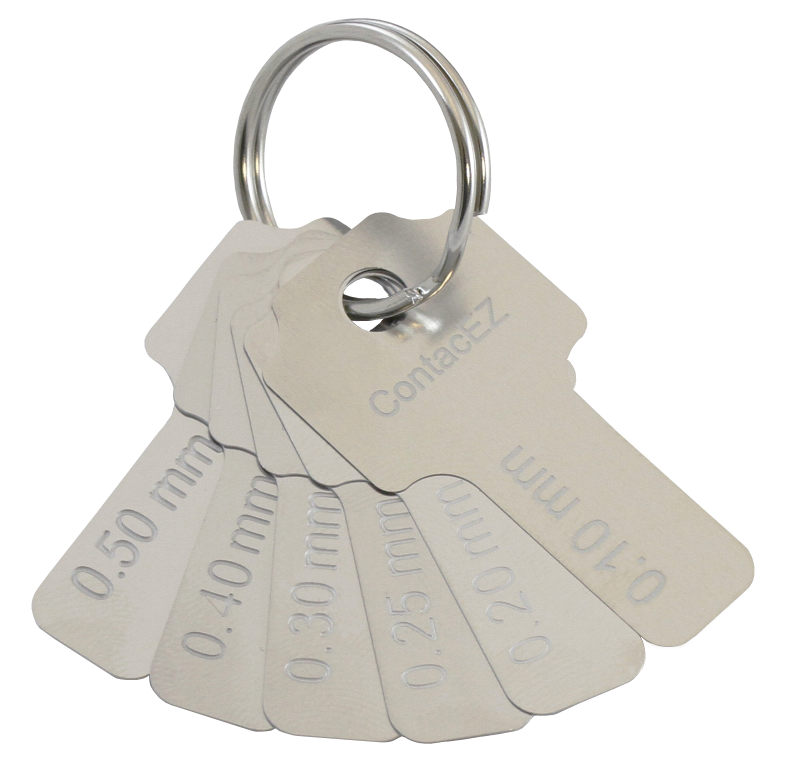

Incremental Thickness Gauge

The ContacEZ Incremental Thickness Gauge efficiently and accurately confirms the amount of interproximal enamel removal or contact reduction for orthodontic treatment. Measure the space prior to stripping to determine how much enamel to remove, and measure again when stripping is completed.

Made in the USA with high-quality stainless steel, autoclavable and reusable, safe and easy to handle, user and patient friendly.

Preparation
The interproximal surface should be polished using the ContacEZ Gray Final Polishing Strip (0.05mm, Ultra-Fine Diamond, Single-Sided) until all adjacent proximal surfaces are smooth in order to accurately verify the final gap dimension with the ContacEZ Incremental Thickness Gauge.

Method

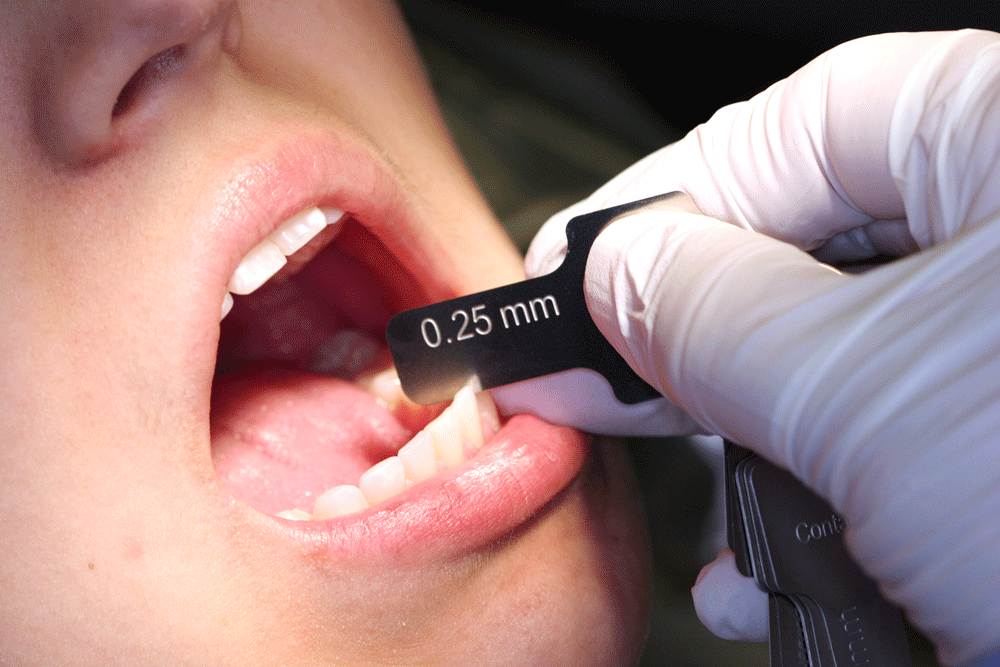

After performing interproximal stripping with the ContacEZ IPR Strip System, select the proper Gauge prescribed for the treatment, and gently insert the Incremental Thickness Gauge with a light brush-like movement. Slight tactile resistance will be felt when the appropriate amount of enamel has been removed. To avoid false readings, it is very important to not force the gauge into the space when measuring.

Sterilization
During sterilization, care should be taken to keep the Incremental Thickness Gauge and dissimilar metals from coming into contact with each other in order to prevent potential oxidation. Suitable sterilization methods are dry heat, or steam heat autoclave, or chemiclave.
Shop Now



Snap-On Disc Guard

Minimize risk and give yourself peace of mind by providing safety for patients’ soft tissue. Use the Snap-On Disc Guard during interproximal reduction with discs to ensure patient safety. Protects the patients’ tongues, lips, cheeks and gums from spinning discs and debris. (The Snap-On Disc Guard is a single-use device and cannot be sterilized, otherwise it may become brittle or malformed.)
Shop Now

  • Fits discs up to 22mm
  • Use with slow speed handpieces
  • Simple: Snap on & off
  • Single-patient use

USAGE INSTRUCTIONS


Snap Disc into Guard

Snap Disc into Guard

Press Disc and Guard into handpiece

Press Disc and Guard into handpiece

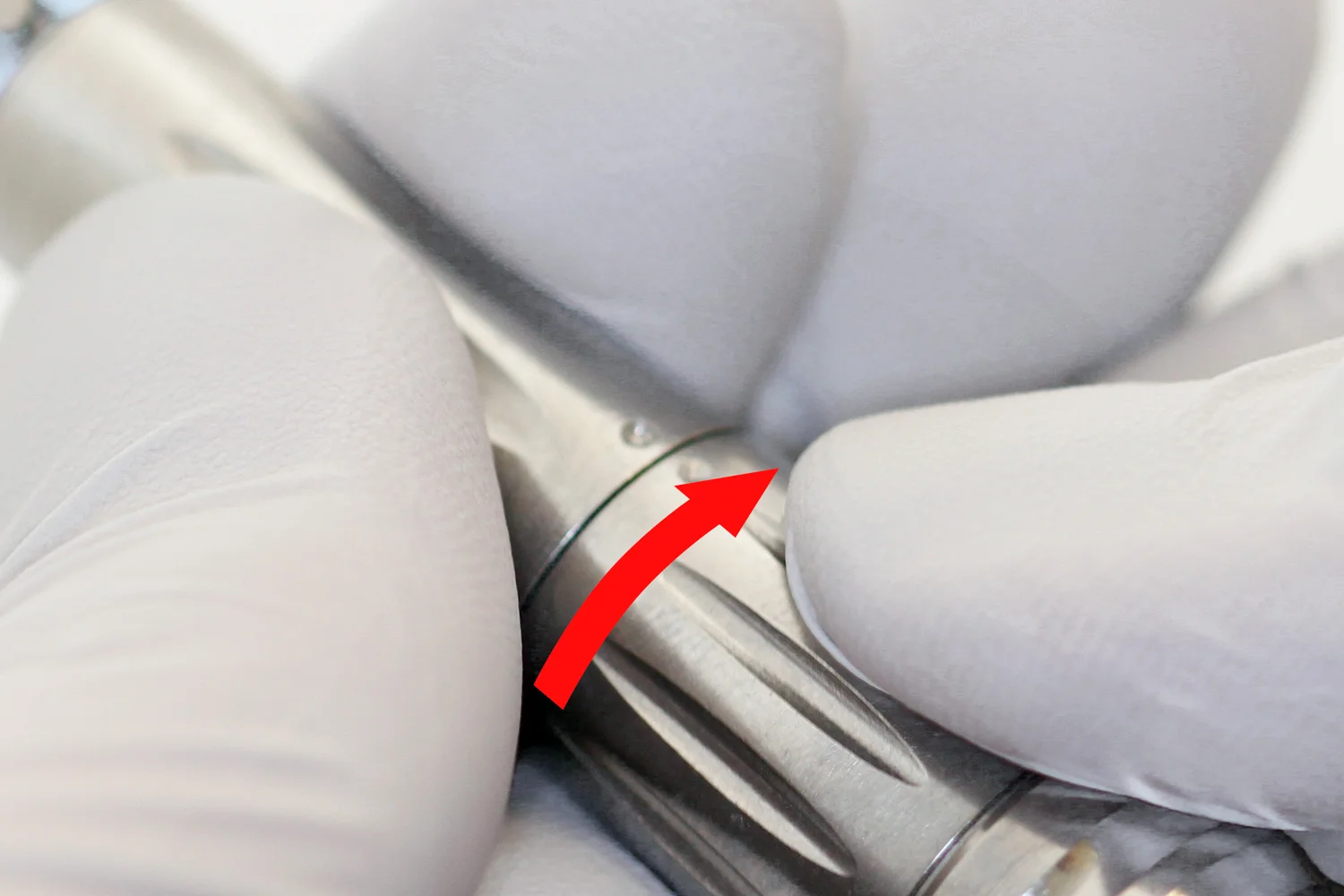

Twist handle to lock

Twist handle to lock

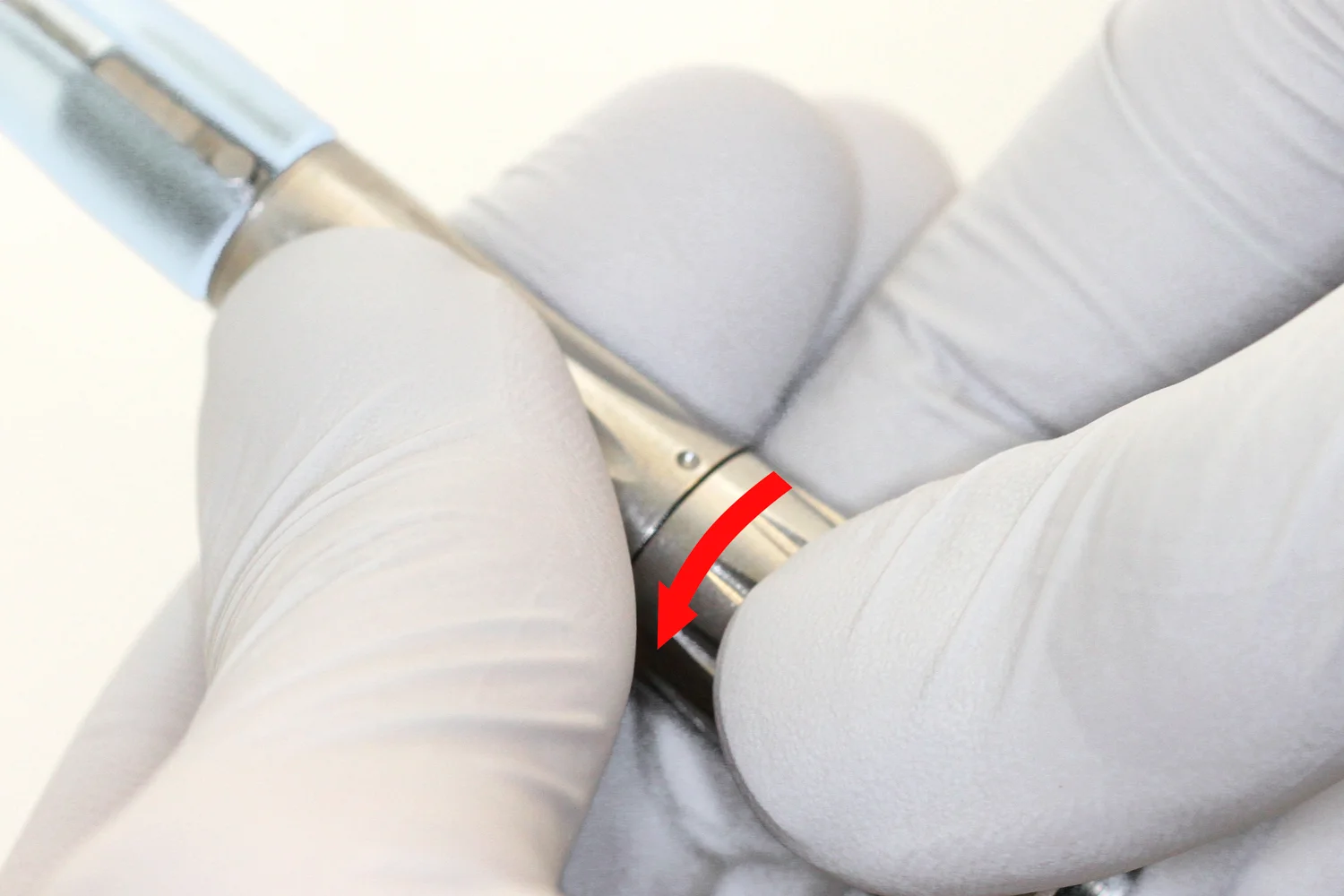

Twist handle to unlock

Twist handle to unlock

Remove Disc from handpiece

Remove Disc from handpiece

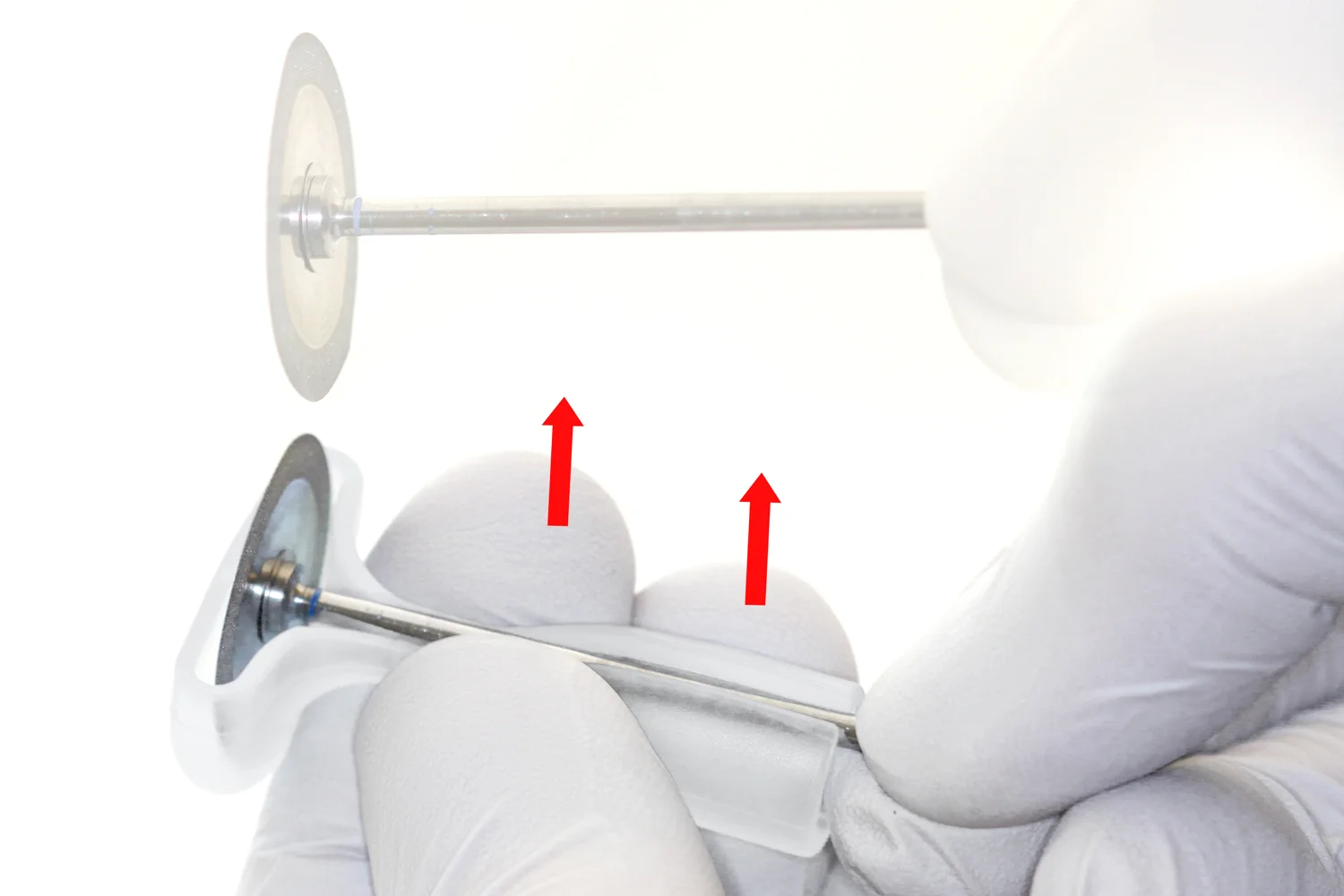

Remove Disc from Guard

Remove Disc from Guard
